How to Price Painting Metal Buildings

Metal buildings are the workhorses of commercial and agricultural property: shops, barns, warehouses, churches, storage buildings and small factories. After enough years in the sun, their factory finish chalks, fades and rusts at the base and around the fasteners, and the owner calls a painter. On the phone it sounds simple: a big rectangle with no windows to cut around. On site, it is a job with its own chemistry, its own access problems and its own ways to go wrong.

This guide is for the painting contractor pricing the repaint of a pre engineered metal building. It explains why the panels are not like siding on a house, how to test the existing finish, how to measure walls, trim and roof, and how to build a price that covers washing, rust treatment, access and the wind. The residential version of painting a metal outbuilding is covered in the best paint for a shed, and pricing metal cladding on a house is covered in how much to charge to paint aluminum siding. This post is about the larger commercial building.

A metal building is a set of panels, not a house

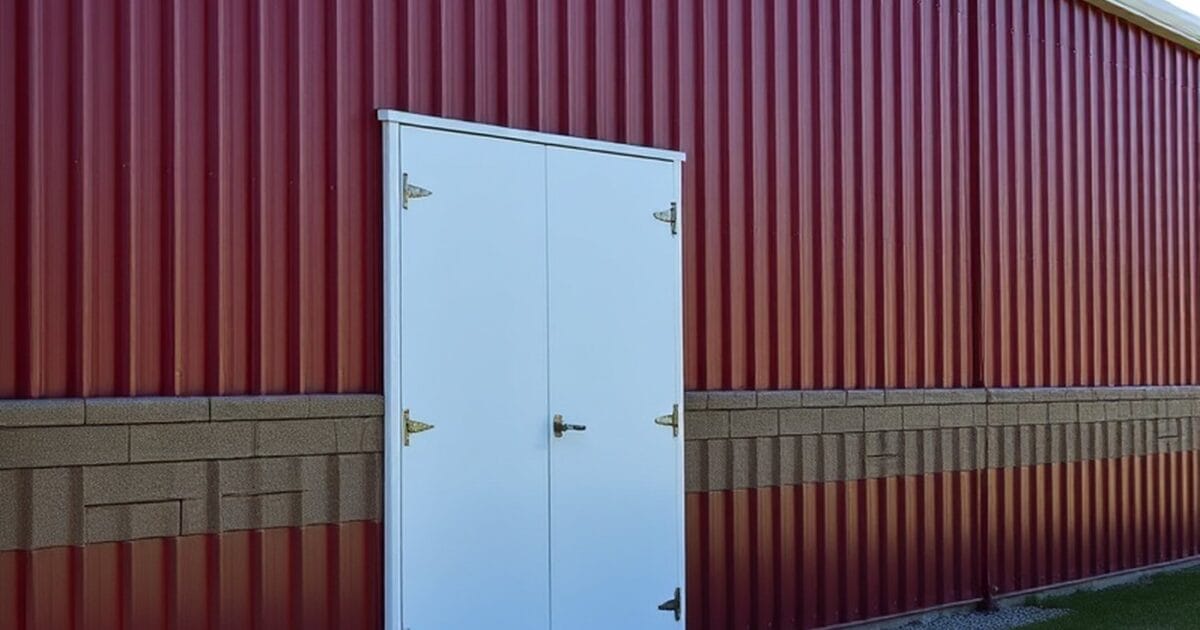

A pre engineered metal building is a steel frame covered with ribbed metal wall and roof panels, finished with trim at the corners, eaves, rakes, doors and base. The panels are long, repetitive and mostly uninterrupted, which makes them fast to paint once the setup is right. The trim, fasteners and details are where the time goes.

The ribs matter. A ribbed panel has more surface than its flat area, and a roller has to reach into each valley. A sprayer handles the ribs well, but only if the painter works each panel with a consistent pattern. Measuring a ribbed wall as flat area underestimates both material and time, which is why many painters apply a factor for the rib profile or measure the developed area of a sample panel and scale it up.

A metal building also has fewer natural stopping points than a house. A long wall with no windows is efficient to paint, but it has to be painted in one continuous pass per coat to avoid lap marks and color shifts. That changes crew size and scheduling more than it changes the rate.

What the panels are made of and what is on them now

Most metal building panels are steel with a metallic coating, often zinc or an aluminum zinc alloy, under a factory applied paint finish. Common factory finishes include polyester, silicone modified polyester and fluoropolymer systems. They are baked on in a factory and designed to last a long time, but they eventually chalk and fade, and where the finish is scratched or cut the metal underneath can corrode.

The type of factory finish matters to the painter because some are harder to paint over than others. Fluoropolymer finishes in particular are designed to resist dirt and weather, which also means they resist new paint. A coating that sticks well to one building may peel off another. Before promising anything, the painter should find out, if possible, what the original finish is, and do an adhesion test with the intended primer and topcoat on a small area.

Unpainted galvanized trim, gutters and doors also need their own approach. New galvanized steel has surface treatments that can interfere with paint adhesion, and weathered galvanizing has zinc oxides that need cleaning. The industry body for galvanizers describes how zinc coated steel is readied for paint on its painting over galvanizing page, with more detail on preparing galvanized steel for paint. Coating families for steel are compared in the best paint for metal.

Chalking, fading and the factory finish

Chalk is the fine powder that forms on the surface of an aging paint film as the binder breaks down. On a metal building, it can be heavy enough to leave a colored mark on a hand wiped across the panel. Paint applied over chalk will fail, because it sticks to the powder instead of the sound finish underneath.

Chalk removal is part of the washing, and it is often the hardest part. Light chalk comes off with a good wash and a cleaner. Heavy chalk may need scrubbing, a stronger cleaner, or a primer designed to bind residual chalk. The amount of chalk varies by wall, with the sunniest walls usually the worst. The walkthrough should check each elevation, and the estimate should state the level of chalk removal included.

Rust at the base, the fasteners and the cut edges

Metal buildings rust in predictable places. The base of the wall panels, where they meet the concrete and where soil, water and fertilizer collect, is usually the worst. Fastener heads rust when their washers fail or their coating wears. Cut edges at the eaves, around openings and at panel ends rust because the metal was exposed when the panel was cut. Scratches from equipment and ladders rust along the scratch.

Each needs cleaning to sound metal, a rust inhibiting primer, and sometimes replacement. Heavily rusted base panels may be beyond painting and need to be replaced by a sheet metal contractor. Failed fasteners may need to be replaced or resealed before painting, which is not painting work. The estimate should count or measure the rust areas by severity and state what is included and what is excluded. The methods for removing coatings and rust from metal are covered in how to remove paint from metal.

Galvanized and coated trim, doors and gutters

The trim on a metal building is small in area but large in time. Corner trim, eave trim, rake trim, base trim, door jambs and gutters all have edges and returns that need brushing or careful spraying. Walk doors are often hollow metal and are priced like any commercial door. Large sliding or roll up doors are items of their own, covered in how to price painting roll up and overhead doors.

Trim is best counted or measured by the linear foot, separately from the panels. Many painters price panels by area and trim by length, with doors counted. This keeps the fast work and the slow work apart, so the estimate stays accurate when a building has unusually heavy trim or a lot of openings.

Washing a metal building before it is painted

Every metal building repaint starts with a wash. The wash removes dirt, chalk, mildew, bird droppings and the oily residue that collects on buildings near roads and equipment. It is usually done with a pressure washer and a cleaner, working from the top down, and the building has to dry fully before primer goes on.

Washing is often underpriced because it looks easy. On a large building it takes a full day or more, needs water and a way to handle the runoff, and may need a lift to reach the upper walls. Wash water carrying cleaners, chalk and old paint can be regulated where it drains to storm sewers, and the EPA explains the framework on its stormwater program page. How to put a number on the wash is covered in how to price pressure washing before painting.

Measuring wall panels, trim and roof separately

A metal building estimate usually has three measured parts. Wall panels are measured by elevation, adjusted for the rib profile, with large openings deducted. Trim is measured by length and banded by type. The roof, if it is in scope, is measured separately because it needs different access, different safety measures and often a different product.

Many owners want the walls painted and the roof left alone, or the roof coated with a reflective or restoration coating rather than paint. Roof coating is a separate trade with its own survey and product rules, covered in roof coating. If the roof is included, the estimate should treat it as a separate line with its own access and fall protection. OSHA sets out fall protection requirements for work at height on its fall protection page.

Spray rigs, wind and overspray on a big site

Metal buildings are usually sprayed, often with an airless rig and long hose, sometimes with backrolling on the first coat to work primer into the ribs. Spraying is fast, but outdoors on a large building it brings one enormous risk: wind. Overspray carried by the wind can land on cars, equipment, other buildings and neighbors, and the cost of cleaning it off can wipe out the profit on the job.

The price should include masking of doors, windows, equipment and anything near the building, and a realistic allowance for days lost to wind. Many painters set a wind limit for spraying and switch to rolling when it is exceeded, which slows the job. Parked cars and equipment may need to be moved away from the building, which requires coordination with the owner. The general use of airless sprayers is covered in how to use a paint sprayer.

Lifts, height and the ground around the building

Metal building walls are often tall, and the eave line is usually above ladder height. Most painters use a boom lift or scissor lift, and sometimes both. The ground around the building decides what lift can be used: soft ground, slopes, gravel, drainage ditches and stored materials all limit access. A lift that cannot reach a wall because of a ditch or a fence is a cost that should be found on the walk, not on the first morning.

Scissor lift hazards and controls are described on the OSHA scissor lift page, and the way to carry lift rental as a line of its own is in how to price access equipment for painting jobs. The rental period should cover washing, drying time and every coat, not just the painting days.

Occupied shops, farms and warehouses

Many metal buildings are in use while they are painted. A shop may have trucks coming and going, a farm building may have livestock or grain, and a warehouse may have forklifts and loading docks. The painter needs to know which doors must stay usable, where equipment can be moved, and when the owner can clear an area.

These constraints change the sequence and the time. A wall with a busy loading door has to be painted around deliveries. A barn with animals may limit spraying and cleaners. The owner may want the work done in phases so the building never stops working. The operational side of working around a running plant is covered in industrial painting projects, and the same principles apply at smaller scale on a busy shop.

Pricing the metal building line by line

A clear metal building estimate separates the work into lines the owner can understand. Washing and chalk removal. Rust treatment by severity, counted or measured. Primer where needed, including spot priming of rust and full priming of chalked or galvanized areas. Finish coats on wall panels by area. Trim by length. Doors counted. Roof, if included, as its own line. Access as its own line. Masking and protection.

The estimate should state the assumptions: the adhesion test result, the products and number of coats, the level of chalk removal, what rust repair is included, and what is excluded, such as panel replacement, fastener replacement and sheet metal repair. It should also state how wind and weather days are handled. The wording for these limits is covered in painting bid exclusions and clarifications, and the general cost build is in how to estimate paint and material costs.

Learning from each building

Metal buildings are repetitive, which makes them easy to learn from. On each one, record the panel area and rib profile, trim length, chalk and rust levels, products, gallons, crew size and hours spent washing, prep and each coat. Record the days lost to wind. After a few buildings, the numbers settle into rates that go onto the painting estimate rate card, and the reasoning behind timed rates is in painting production rates.

Those records let a painter price the next building with confidence, and they show where the money is really made or lost. On most metal buildings it is not the panels but the washing, the rust, the trim and the weather.

Frequently asked questions

How do painters price painting a metal building?

Most price the wall panels by area adjusted for the rib profile, the trim by length, doors by count and the roof separately, then add washing, rust treatment, access and masking as their own lines, using rates from their own timed jobs.

Can any paint go over a factory finished metal panel?

No. Some factory finishes, especially fluoropolymer systems, resist new paint. An adhesion test with the intended primer and topcoat on a small area should come before any promise about the finish.

Why is chalk such a problem on metal buildings?

Chalk is the powder left as an old finish breaks down. New paint sticks to the chalk instead of the sound finish and can peel. It must be washed off, and heavy chalk may need scrubbing or a chalk binding primer.

Is rust repair part of a painting price?

Surface rust cleaning and priming usually is. Panels rusted through, failed fasteners and sheet metal replacement are other trades and should be excluded or priced separately with the condition described.

Should the roof of a metal building be painted?

It can be, but it is a separate line with different access, fall protection and often a different product. Many owners choose a roof coating system instead, which is its own scope.

How does wind affect a metal building price?

Spraying outdoors in wind risks overspray on cars and buildings, so painters set limits and lose days or switch to slower rolling. A realistic allowance for weather days belongs in the schedule and the price.
